Heat
Shrinkable Low Voltage Breakouts |
(Heat Shrink Low voltage breakouts up to 1kV) |
| |
|
Download
Ikebana Heat Shrink Low Voltage Breakouts Brochure(Specifications and the product dimensions given in this brochure are subject to change without notice.
Please refer to the latest version of the drawings and specification-sheets on the Ikebana web site,
or contact our office in Thailand.)
|
| |
| Product Data
Sheet |
| |
|
Characteristics |
| This data sheet covers the
requirements for heat shrink low voltage breakouts whose
dimension will shrink to a predetermined size upon the
application of heat above 125 deg. C. Color of the LV
breakouts is black. The LV breakouts are electrically
insulating, UV resistant and weather proof. LV Breakouts are
with two, three, four or five fingers and are spiral coated on
machine with poly-amide based hot melt adhesive or (against
special orders) rubber mastic and covered with release
paper). |
| |
| Typical Applications |
| The LV breakouts provide insulation
and sealing over the crutch of multi-core cables. The hot
melt adhesive or the mastic sealant provides a water tight
environmental seal to the cable. The LV breakouts are
normally used as an integral part of cable terminations up
to 1kV. |

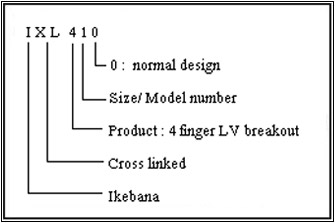

The following application tables give the LV-2F, LV-3F, LV-4F, LV-5F and LV-6F breakout dimensions.
|
Breakout
2-F Model |
Breakout main diameter |
Finger Diameter |
Full Length |
Finger Length |
R (mm) |
S (mm) |
R (mm) |
S (mm) |
R (mm) |
R (mm) |
IXL 250 |
10.0 |
33.0 |
3.0 |
14.0 |
90.0 |
20.0 |
IXL 260 |
22.0 |
60.0 |
6.7 |
24.0 |
120.0 |
35.0 |
|
| |
Breakout
3-F Model |
Breakout main diameter |
Finger Diameter |
Full Length |
Finger Length |
R (mm) |
S (mm) |
R (mm) |
S (mm) |
R (mm) |
R (mm) |
IXL 300 |
8.5 |
28.0 |
2.5 |
12.0 |
70.0 |
23.0 |
IXL 350 |
14.0 |
45.0 |
4.0 |
15.0 |
110.0 |
20.0 |
IXL 360 |
22.0 |
60.0 |
8.0 |
26.0 |
185.0 |
45.0 |
IXL 370 |
33.0 |
80.0 |
16.0 |
36.0 |
210.0 |
50.0 |
IXL 375 |
33.0 |
110.0 |
16.0 |
40.0 |
210.0 |
50.0 |
IXL 380 |
47.0 |
110.0 |
20.0 |
48.0 |
225.0 |
75.0 |
IXL 385 |
47.0 |
125.0 |
20.0 |
55.0 |
250.0 |
75.0 |
IXL 390 |
54.0 |
140.0 |
27.0 |
62.0 |
240.0 |
65.0 |
IXL 395 |
54.0 |
155.0 |
27.0 |
62.0 |
240.0 |
65.0 |
|
| |
Breakout
4-F Model |
Breakout main diameter |
Finger Diameter |
Full Length |
Finger Length |
R (mm) |
S (mm) |
R (mm) |
S (mm) |
R (mm) |
R (mm) |
IXL 400 |
8.5 |
28.0 |
1.8 |
10.0 |
70.0 |
23.0 |
IXL 410 |
14.0 |
38.0 |
3.2 |
15.0 |
105.0 |
25.0 |
IXL 415 |
14.0 |
50.0 |
3.2 |
15.0 |
105.0 |
25.0 |
IXL 420 |
25.0 |
55.0 |
6.0 |
20.0 |
180.0 |
45.0 |
IXL 425 |
25.0 |
65.0 |
6.0 |
25.0 |
180.0 |
45.0 |
IXL 430 |
22.0 |
72.0 |
8.5 |
25.0 |
190.0 |
45.0 |
IXL 440 |
33.0 |
100.0 |
14.0 |
35.0 |
215.0 |
50.0 |
IXL 450 |
47.0 |
125.0 |
20.0 |
45.0 |
245.0 |
72.0 |
|
| |
|
|
Breakout
5-F Model |
Breakout main diameter |
Finger Diameter |
Full Length |
Finger Length |
R (mm) |
S (mm) |
R (mm) |
S (mm) |
R (mm) |
R (mm) |
IXL 510 |
15.0 |
50.0 |
3.2 |
15.0 |
105.0 |
30.0 |
IXL 540 |
33.0 |
80.0 |
9.0 |
27.0 |
215.0 |
60.0 |
IXL 545 |
33.0 |
102.0 |
9.0 |
35.0 |
215.0 |
60.0 |
|
|
| |
|
|
Breakout
6-F Model |
Breakout main diameter |
Finger F1 Diameter |
Finger F2 Diameter |
Full Length |
Finger Length |
R (mm) |
S (mm) |
R (mm) |
S (mm) |
R (mm) |
S (mm) |
R (mm) |
R (mm) |
IXL 640 |
33.0 |
100.0 |
6.0 |
19.0 |
12.0 |
38.0 |
215.0 |
50.0 |
|
|
S: As supplied R: Fully recovered |
Engineering Drawings
Low Voltage 2-Finger Breakouts
Low Voltage 3-Finger Breakouts
Low Voltage 4-Finger Breakouts
Low Voltage 5-Finger Breakouts
Low Voltage 6-Finger Breakouts |
| |
| Materials |
| The base material of the LV
breakouts is thermally stabilized, cross linked polyolefin
blended with synthetic rubber. The basic resins are mixed
with chemical additives offering fire retarding properties
(optional) and protection against oxidation, ozone and other
environmental effects. The fingers and the main body are
internally machine coated with a polyamide based hot melt
adhesive or on special request, manually applied with a
butyl rubber based mastic which is electrical insulating and
water-proof. |
| |
|
| |
| Printing on the Product |
Each Ikebana Breakouts is printed
with a heat resistant printing ink of white color. Printed
information includes:
1. Ikebana logo
2. Product code |
| |
| Packaging |
| LV breakouts are packed individually
in a polythene bag. A specified number of LV breakouts are
packed inside a standard corrugated carton. The outer carton
carries an IKEBANA label with information of the contents
and the customer's name. |
| |
